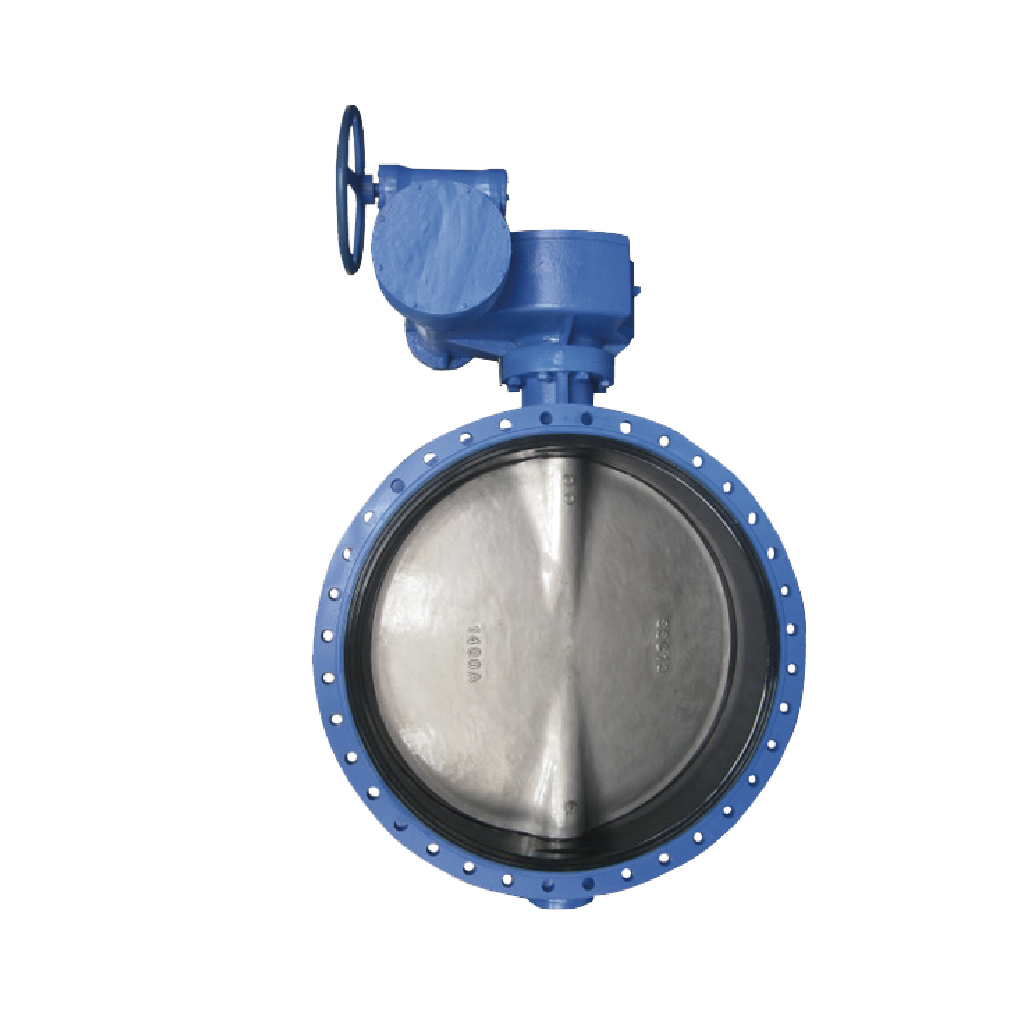

Flanged Centerline Butterfly Valve
Parameters
- Product specifications DN50-DN1200
- valve body QT450-10, WCB, stainless steel, etc.
- valve plate ductile iron nylon, 304SS, etc.
- valve spindle 45 #, 416SS, etc.
- valve seat EPDM, NBR, PTFE, etc.
- drive electric, pneumatic, turbo, handle
- medium temperature -15 ℃ -120 ℃.
Applicable industries
Domestic water supply and drainage, fire water system
central air-conditioning system, sewage treatment system
water, gas, oil, chemical industry
construction, water treatment, etc.
.
Product overview
The centreline double flange butterfly valve is designed according to the requirements of large pipeline network and belongs to mesh valve.
- Product parameters
- Technical features
- Dimensions
- Installation guide
- Application examples
-
Nominal pressure PN10~64 Strength test pressure Nominal pressure*1.5MPa Seal test pressure Nominal pressure*1.1MPa -
1. High strength of valve body. Large safety coefficient, able to resist very large pipeline pressure. High strength of valve body. High safety coefficient, able to resist great pipeline pressure.
2. The valve seat adopts the structural form of overall vulcanisation on the valve body and extends to the outer edge of the valve body, which eliminates the use of flange gasket, and the seat of sulphur is strong and reliable, eliminating leakage paths and corrosion gaps.
3. Soft sealing centreline double flange butterfly valve can achieve 100% bidirectional switching function. It can be used in various fields of industry, especially in shipbuilding, embankment, petrochemical, heavy industry, seawater, tap water, sewage and other large pipe networks. -
DN L1 PN10 PN16 φD1 n-φh φD1 n-φh DN50 108 125 4-18 125 4-18 DN65 112 145 8-18 145 8-18 DN80 114 160 8-18 160 8-18 DN100 127 180 8-18 180 8-18 DN125 140 210 8-18 210 8-18 DN150 140 240 8-22 240 8-22 DN200 152 295 8-22 295 12-22 DN250 165 350 12-22 355 12-26 DN300 178 400 12-22 410 12-26 DN350 190 460 16-22 470 16-26 DN400 216 515 16-26 525 16-30 DN450 222 565 20-26 585 20-30 DN500 229 620 20-26 650 20-33 DN600 267 725 20-30 770 20-36 DN700 292 840 24-30 840 24-36 DN800 318 950 24-33 950 24-39 DN900 330 1050 28-33 1050 28-39 DN1000 410 1160 28-36 1170 28-42 DN1200 470 1380 32-39 1390 32-48 DN1400 530 1590 36-42 1590 36-48 DN1600 600 1820 40-48 1820 40-56 DN1800 670 2020 44-48 2020 44-56 DN2000 760 2230 48-48 2230 48-62 -
