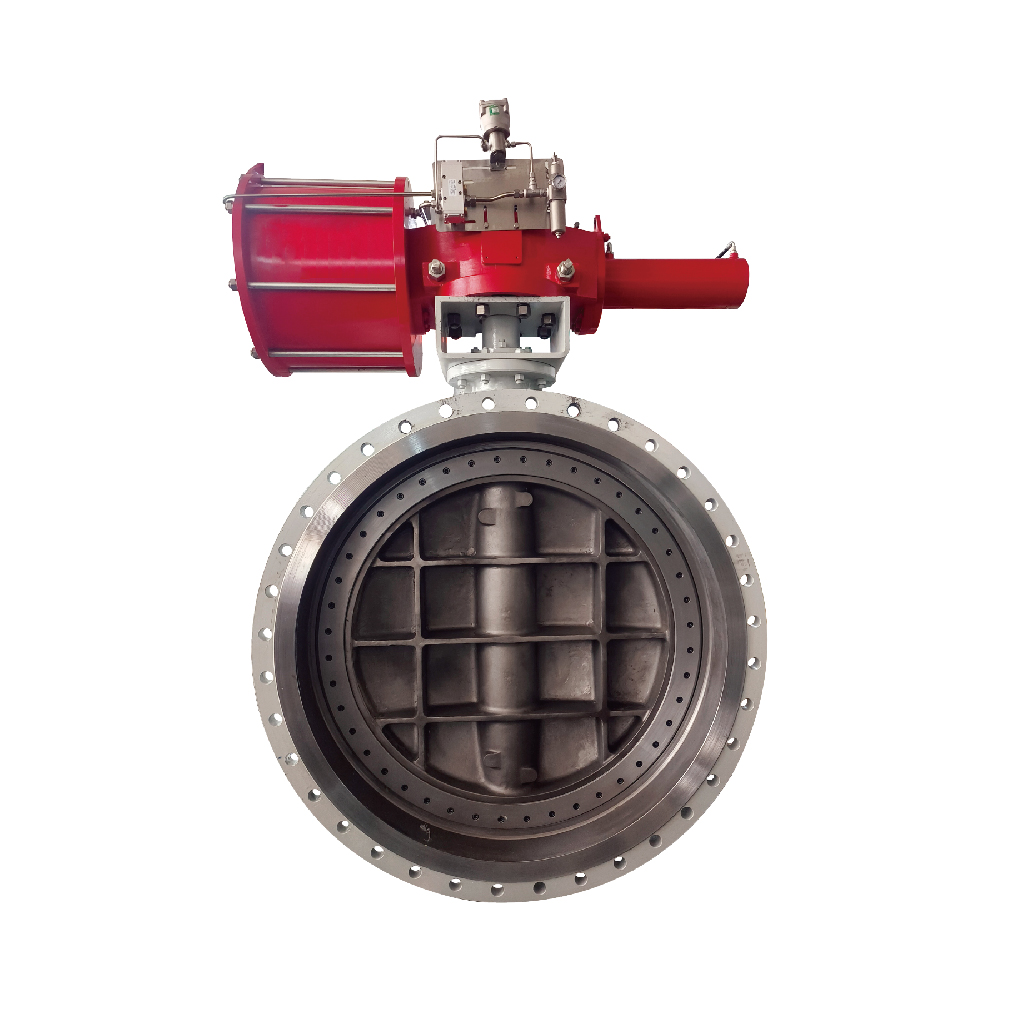

Flanged Triple Eccentric Butterfly Valve
Parameters
- Product specifications DN50-DN1200
- valve body QT450-10, WCB, stainless steel, etc.
- valve plate ductile iron nylon, 304SS, etc.
- valve shaft 45 #, 416SS, etc.
- valve seat EPDM, NBR, PTFE, etc.
- drive electric, pneumatic, turbo, handle
- medium temperature -15 ℃ -120 ℃
Applicable industries
Domestic water supply and drainage, fire water system
central air-conditioning system, sewage system
water, gas, oil, chemical industry
construction, water treatment, etc.
.
Product overview
Three eccentric metal sealed butterfly valve is a new generation of butterfly valve products developed by introducing German technology. Product performance has been better than the leading level at home and abroad, widely used in metallurgy, petroleum, chemical industry, electric power, municipal construction and other industrial pipelines for cutting off or regulating the flow of media.
- Product parameters
- Technical features
- Dimensions
- Installation guide
- Application examples
-
Nominal pressure PN10~63 Strength test pressure Nominal pressure*1.5MPa Seal test pressure Nominal pressure*1.1MPa -
1. Short structural dimensions, small size, light weight, light operation.
2. Adopting whole shaft structure, the butterfly plate is truss structure, high strength of butterfly plate, large overflow area, small flow resistance, energy saving.
3. Unique eccentric design; this butterfly valve is equipped with unique angular eccentric design on the basis of traditional double eccentric structure, making full use of the cam special effect, so as to realise that when the valve opens, the valve seat disengages from the sealing ring instantly, and eliminates friction and wear on the 90-degree stroke.
4. Metal seal: butterfly valve seat surface surfacing temperature, corrosion-resistant alloy materials, sealing ring multi-layer stainless steel sheet composition. Under the action of the applied torque, the contact angle produces a slight wedge effect, which makes the sealing ring kneading and radial compression, so as to achieve the tightest closure with the smallest torque. -
Ll PN10 PN16 PN25 PN40 PN63 DN PN10-40 PN63 φD1 n-φh φD1 n-φh φD1 n-φh φD1 n-φh φD1 n-φh DN50 108 150 125 4-18 125 4-18 125 4-18 125 4-18 135 4-22 DN65 112 170 145 8-18 145 8-18 145 8-18 145 8-18 160 8-22 DN80 114 180 160 8-18 160 8-18 160 8-18 160 8-18 170 8-22 DN100 127 190 180 8-18 180 8-18 190 8-22 190 8-22 200 8-26 DN125 140 200 210 8-18 210 8-18 220 8-26 220 8-26 240 8-30 DN150 140 210 240 8-22 240 8-22 250 8-26 250 8-26 280 8-33 DN200 152 230 295 8-22 295 12-22 310 12-26 320 12-30 345 12-36 DN250 165 250 350 12-22 355 12-26 370 12-30 385 12-33 400 12-36 DN300 178 270 400 12-22 410 12-26 430 16-30 450 16-33 460 16-36 DN350 190 290 460 16-22 470 16-26 490 16-33 510 16-36 525 16-39 DN400 216 310 515 16-26 525 16-30 550 16-36 585 16-39 585 16-42 DN450 222 330 565 20-26 585 20-30 600 20-36 610 20-39 - DN500 229 350 620 20-26 650 20-33 660 20-36 670 20-42 DN600 267 390 725 20-30 770 20-36 770 20-39 795 20-48 DN700 292 430 840 24-30 840 24-36 875 24-42 DN800 318 470 950 24-33 950 24-39 990 24-48 - DN900 330 - 1050 28-33 1050 28-39 1090 28-48 - DN1000 410 - 1160 28-36 1170 28-42 1210 28-56 - - DN1200 470 1380 32-39 1390 32-48 DN1400 530 1590 36-42 1590 36-48 DN1600 600 1820 40-48 1820 40-56 DN1800 670 2020 44-48 2020 44-56 - DN2000 760 - 2230 48-48 2230 48-62 - -
